Advanced:ZeoScript filter

Input pins may be accessed in scripts using the variable names in0, in1, in2, etc. The data type of an input pin is determined by the data type of the output pin to which it is connected.

Output pins may be accessed in scripts using the variable names out0, out1, out2, etc. The data type of an output pin is determined by the data type of the input pin to which it is connected.

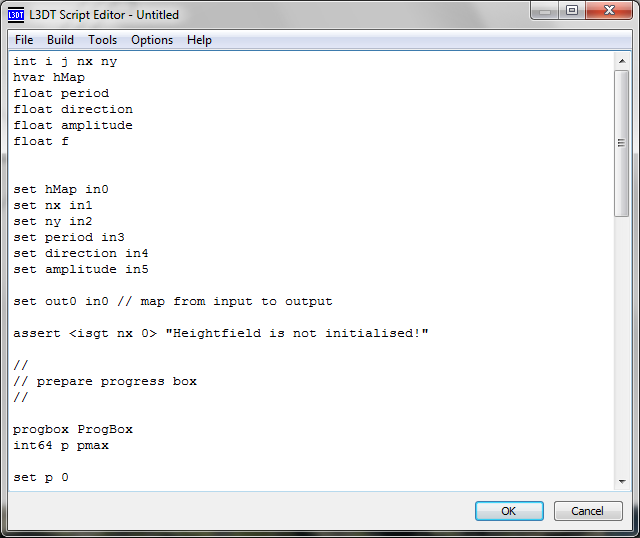

The only options stored within the ZeoScript filter is the script to be executed when the graph is run. Hence, the filter options window for this filter is the L3DT Script Editor window, as shown below. The user guide for the script editor is on-line here.

Scripts must return 0 to indicate success, or -1 to indicate failure.

A substantial example of the ZeoScript filter is given in the 'Sine generator' graph that is included in the L3DT installer. This script filter generates a heightfield using a sine wave function using a number of input parameters. The script is given below:

int i j nx ny
hvar hMap
float period
float direction
float amplitude
float f


set hMap in0
set nx in1
set ny in2
set period in3
set direction in4
set amplitude in5

set out0 in0 // map from input to output

assert <isgt nx 0> "Heightfield is not initialised!"

//
// prepare progress box
//

progbox ProgBox
int64 p pmax

set p 0
set pmax ny

progbox.ShowWnd &ProgBox
progbox.SetTitle &ProgBox "Calculating"

//
// prepare some variables for the loop
//

float fx fy phase freq Angle_rad
set freq <div <mul 3.14159 2> period>
set Angle_rad <mul <div direction 180.0> 3.14159>
set Angle_rad <sub <div 3.14149 2> Angle_rad> // makes angles clockwise, with 0 at north

//
// here we go!
//
set j 0
do

  // set progress every line
  progbox.SetProgress &ProgBox p pmax
  incr p

  set i 0
  do
    set fx <mul <cos Angle_rad> i>
    set fy <mul <sin Angle_rad> j>
    set phase <add fx fy>

    set f <sin <mul freq phase>>

    set f <mul f amplitude>

    map.SetPixel hMap i j &f

  while <islt <incr i> nx>
while <islt <incr j> ny>

//
// flag map as being ready and modified
//
map.SetFlag hMap 1 true // MAPFLAG_ISREADY
map.SetFlag hMap 5 true // MAPFLAG_ISMODIFIED

return 0
